Robot–Elevator Multi-Floor Navigation

MQTT–ROS 2 bridge and a custom multi-floor action let a real robot call, board and exit an elevator; SOR filtering fixes LiDAR glare.

Period 2025.05 – 2025.09 · Affiliation KETI (SDR national R&D project) · Role MQTT–ROS 2 bridge design and implementation, multi-floor movement sequence control, sensor preprocessing, real-robot validation

Background and Problem

Conventional robot autonomous navigation is centered on single-floor navigation. Elevator integration is essential for multi-floor building services, but there were four barriers. (1) The elevator communicates over MQTT while the robot uses ROS 2. (2) Experiments with a real elevator are heavily constrained in repeatability, safety, and cost. (3) The multi-stage sequence of call, board, floor transfer, and exit must be controlled as states. (4) LiDAR scattering off the metal and glass surfaces inside the elevator car breaks localization.

Approach

Overall system architecture — a three-layer abstraction of ROS 2 robot / Bridge / MQTT elevator.
  1. MQTT↔ROS 2 Bridge (Phase 1): A bidirectional Bridge Node abstracts the robot, bridge, and elevator into three layers so that the robot side never handles MQTT directly. The API was defined by separating state into Topics (ArriveResponse, CallRequest, CmdResult) and commands into Services (CallElevator, ArriveElevator, RequestBoard/Unboard, UpdateBoardState).
  2. Gazebo verification (Phase 2): Since the default Nav2 Action handles only a single floor, a custom NavigateMultiFloor Action was designed to control “check current floor → call → board → floor transfer → exit → destination coordinates” as a single integrated mission. Verified repeatedly in a multi-floor Gazebo world with a Clearpath Jackal and an elevator plugin.
  3. TETRA_S real-robot demonstration (Phase 3): Connected the bridge to an elevator in actual service and executed the full process through a 9-state flow based on Nav2 (NavFn/DWB): IDLE → move to waiting point → call → wait for arrival → board → wait inside → exit → destination.

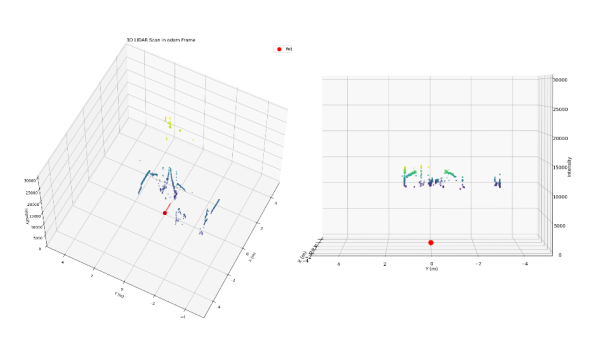

  4. SOR LiDAR preprocessing (Phase 4): Statistical Outlier Removal compares the mean distance to each point’s K nearest neighbors against the global distribution (μ, σ) and removes only isolated points exceeding μ+α·σ, preserving wall structure while selectively filtering spurious reflections.

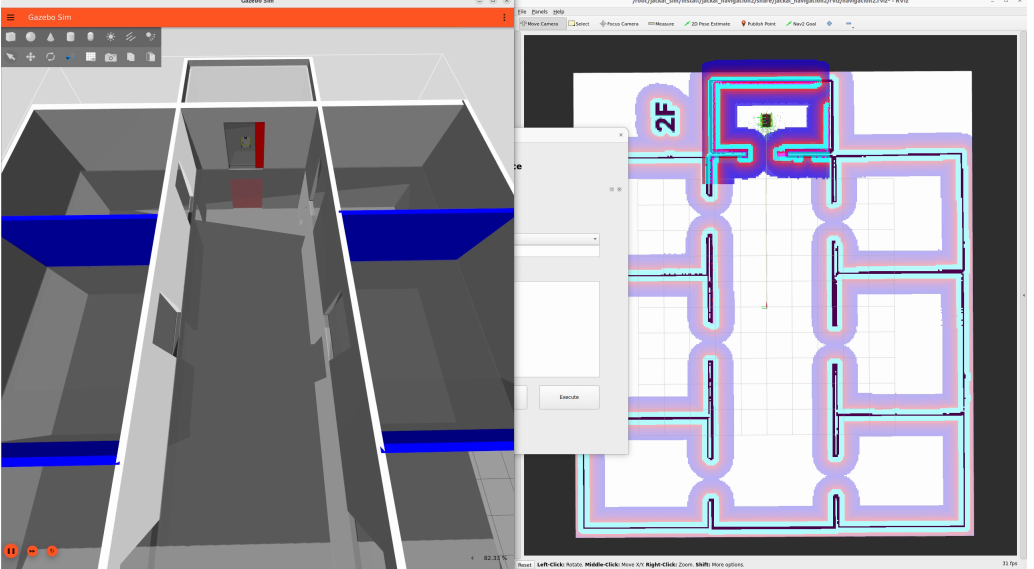

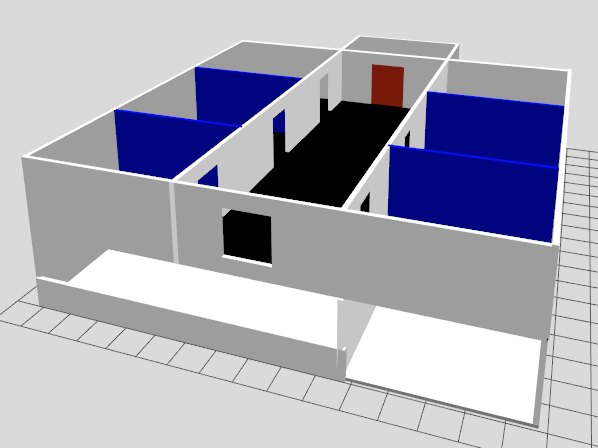

The Jackal robot in the multi-floor Gazebo environment and a simulated elevator boarding scene.

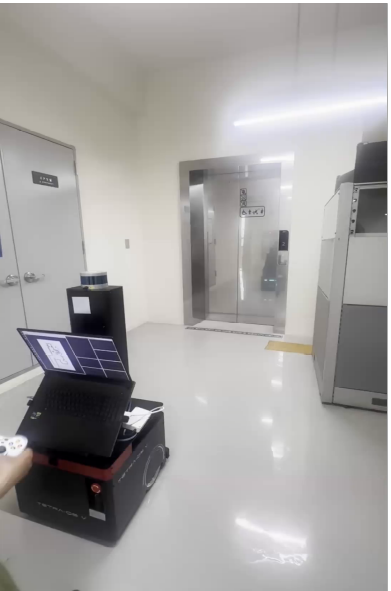

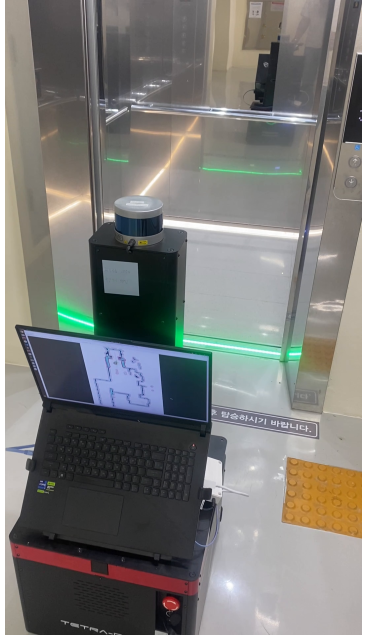

Real-building demonstration — TETRA_S calling / boarding / waiting inside / exiting.

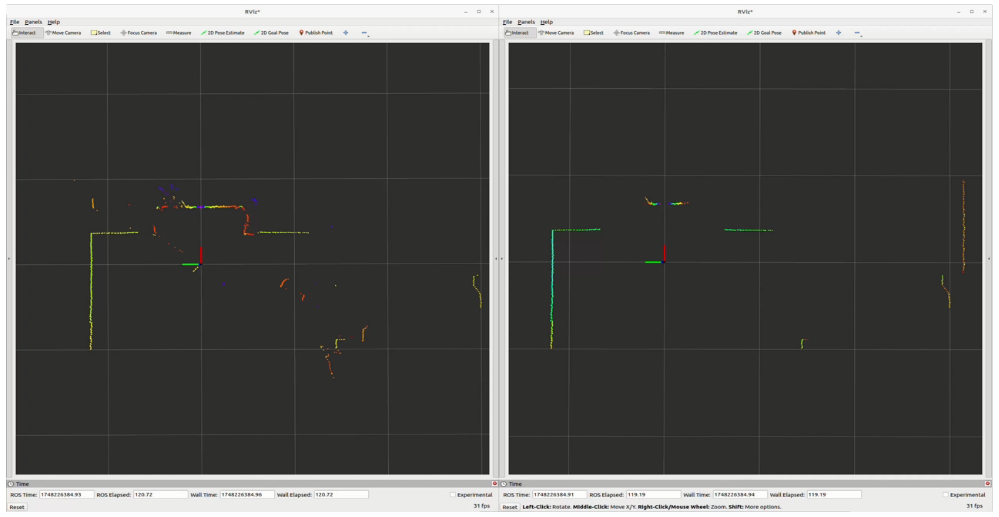

LiDAR scan comparison before (left) and after (right) applying the SOR filter — isolated reflection points are removed and the wall contours remain continuous.

Results

Item Result
MQTT↔ROS 2 conversion success rate 100% in both directions
Average conversion latency 30–60 ms, no packet loss under multiple concurrent calls
Real-robot demonstration TETRA_S reliably completed the full call–board–wait–exit sequence on a real elevator, continued Nav2 navigation after exiting, with no path interruption
Sensor After SOR, many isolated points were removed and obstacle perception matched the real environment

The SOR troubleshooting in this project later carried over to the SDR OTA project, where the Elevator and Docking functions were verified on top of the OTA framework without code modification.

Tech Stack

ROS 2 Humble · MQTT (Mosquitto) · In-house MQTT–ROS 2 Bridge · Nav2 (NavFn / DWB) · Custom Action · 2D LiDAR / IMU / Encoder · SOR · Gazebo + Elevator Plugin · Jackal / TETRA_S · C++ / Python
