6-Axis Manipulator Kinematics

D-H parameters, forward/inverse kinematics and cubic-spline paths in MATLAB, verified against hand calculation.

Period 2021.09 – 2021.11 · Affiliation Keimyung University (personal project) · Role Carried out everything alone, from kinematic modeling to MATLAB simulation implementation

Background and Goals

An industrial collaborative robot can only place its end-effector at the intended position if the relationships between links are modeled mathematically and precisely. The goal was to understand kinematics end to end by deriving and implementing the D-H parameters myself, and to verify that hand-calculated values agreed with the simulation results.

Approach

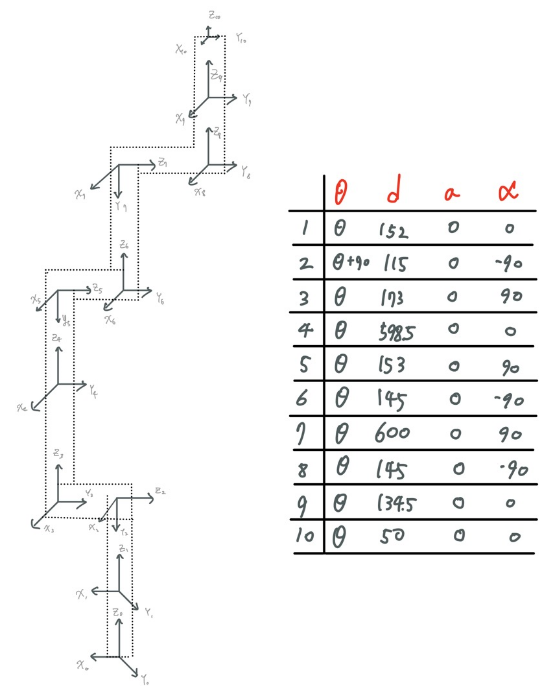

Coordinate frame assignment and D-H parameter definition (left), and derivation of the transformation matrices (right).
  1. Coordinate frame assignment and D-H derivation: Assigned the origin of each joint, set the Z axis along the rotation axis and the X and Y axes by the right-hand rule, and defined the four parameters (d, θ, a, α).
  2. Transformation matrix derivation: Generalized the joint-to-joint transformation matrices with D-H and derived the base-to-end-effector relationship as \(T_0^n = A_0^1 A_1^2 \cdots A_{n-1}^n\).
  3. MATLAB implementation: Implemented the transformation matrix function, link/joint plotting, the initial pose, and cumulative visualization of user input in a structure separated into function files and a run script.
  4. Path planning: To compensate for the instability of straight-line paths (stop → constant velocity → stop is not achievable), applied a cubic spline \(\theta(t) = A\left(1 - \cos\frac{n\pi}{T}t\right)\) with zero angular velocity at departure and arrival.
  5. Inverse kinematics: Solved for each θ from the end-effector position. Used atan2 to ensure continuity over −π to π, and classified cases where the denominator becomes zero in the a = 0 transformation matrix as singularities.

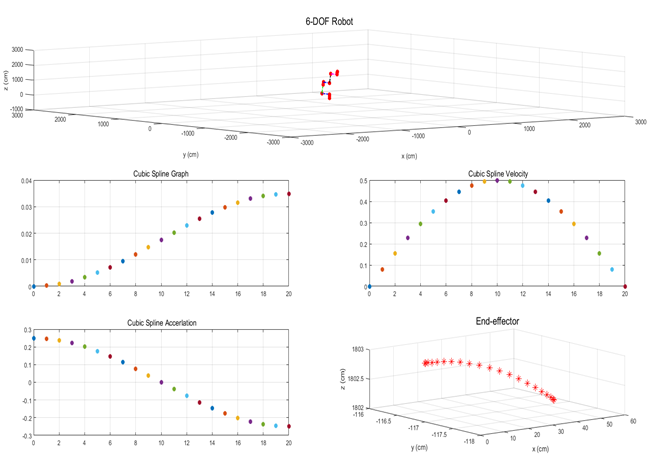

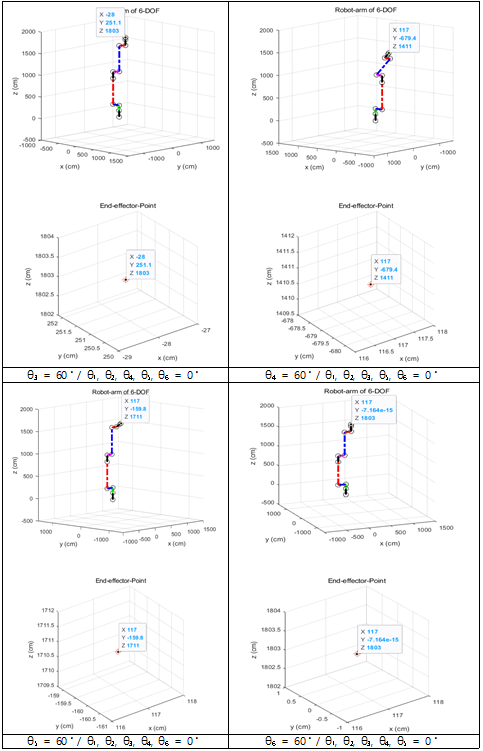

MATLAB simulation (left), cubic spline path planning (center), and verification that hand calculations match the simulation (right).

Results

  • With inputs θ₂ = 60° and θ₅ = 60°, the hand-calculated (X, Y, Z) = (117, 1170, 1127) matched the simulation result exactly, verifying the accuracy of the model.
  • Completed an interactive tool in which the user enters θ values and observes the pose change in real time.
  • Remaining work: automatic singularity detection and avoidance, Jacobian-based velocity control, and Simulink integration.

Tech Stack

MATLAB · D-H Parameters · Forward / Inverse Kinematics · Cubic Spline · Homogeneous transformation matrices
